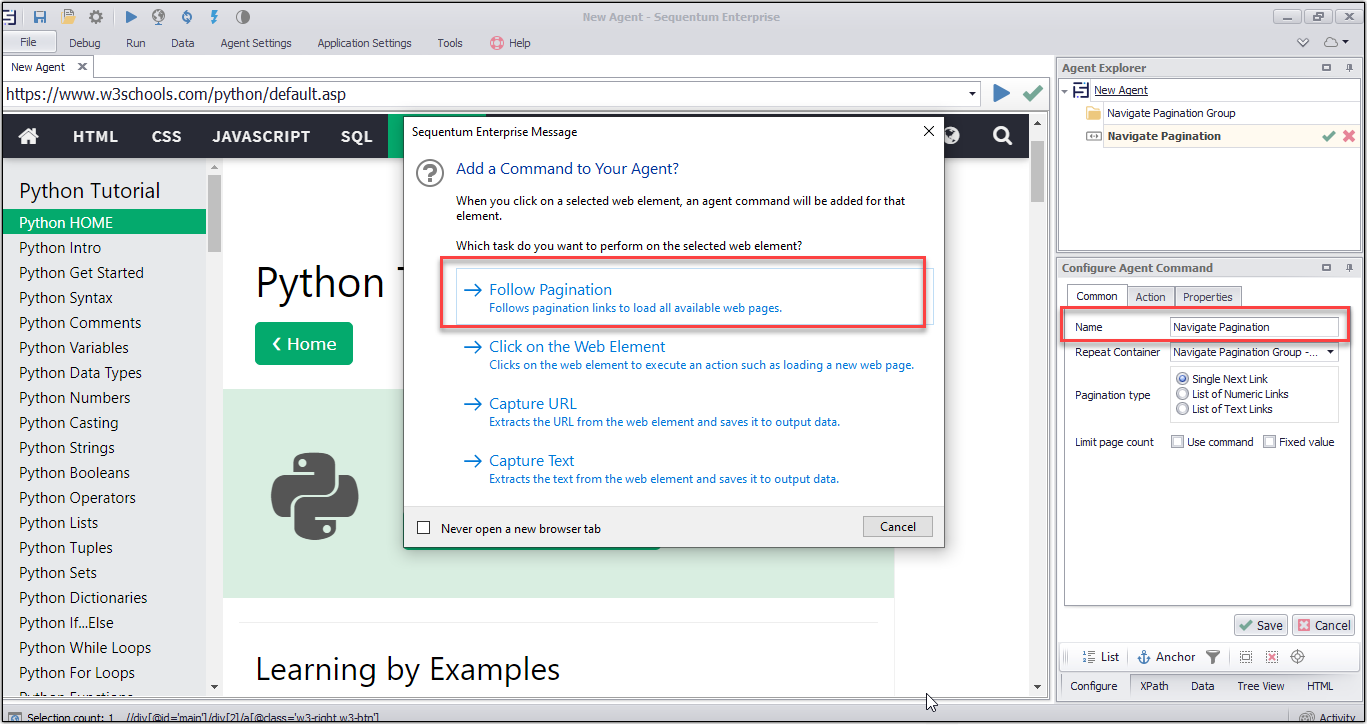

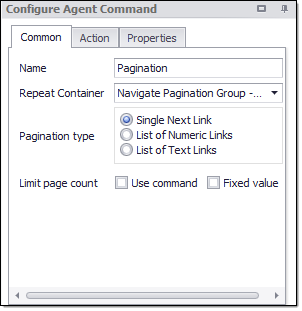

Navigate Pagination

Link Action: The action to perform on the selected web element or URL.

• Action Type: Specifies the action to perform when clicking on a web element.

• Activities: Specifies how this action should wait for the browser activities to complete.

  • Wait for Content: The default value is set to Optional. Waits for web selections and URLs specified by this property value required, optional, no wait.

  • Wait for External Sub-Page Load: The default value is set to No Wait or Parse. Specifies if the command should wait for one or more page loads to occur that originate from different domains than the main page.

  • Wait for External Sub-Page Scripts: The default value is set to False. Specifies if the command should wait for one or more async scripts loads to complete on subpages from different domains than the main page.

  • Wait for Internal Sub-Page AJAX: The default value is set to True. Specifies if the command should wait for one or more AJAX requests to complete on sub-pages from the same domain as the main page.

  • Wait for Internal Sub-Page Load: The default value is set to Optional. Specifies if the command should wait for one or more page loads to occur in browser frames. Will only wait for pages from the same domain as the main page.

  • Wait for Internal Sub-Page Scripts: The default value is set to False. Specifies if the command should wait for one or more async scripts loads to complete on subpages from the same domain as the main page.

  • Wait for Main Page AJAX: The default value is set to True. Specifies if the command should wait for one or more AJAX requests to complete on the main page in the browser.

  • Wait for Main Page Load: The default value is set to Required. Specifies if the command should wait for one or more full page loads to occur in the browser.

• Add Force Refresh Header: Adds an “If-Modified-Since” header to the web request to make sure the web page is not retrieved from cache. The default value is set to false.

• Block Known Ad Servers: The web page will not load content from known ad servers, such as “ad.doubleclick.net”. This speeds up processing slightly.

• Block Popup: Default value is set to False. This property set to True allows the user to blocks any popup opened by the action.

• Blocked Events: A list of events that are blocked in design and debug mode. These events are only blocked if the document the mode is greater than 9.

• Break HTML Area: Specifies whether the action breaks an HTML area. Actions that load a new page always break HTML areas.

• Browser Mode: This property specifies the different types of browser that can be used to run an agent·

  • Dynamic Browser: The browser functions as a standard web browser, and it download images and execute JavaScript.

  • HTML Parser: The HTML Parser doesn’t execute JavaScript and does not load frames, so it is faster and more reliable than a Dynamic Browser. However, the parser doesn’t work on websites that rely on JavaScript, and the parser may also be unable to some web forms (even when they don’t rely on JavaScript).

  • J SON Parser: This property does not start a new browser. Instead, it parses J SON content returned by a web server, and lets you easily extract content elements from the J SON content.

  • XML Parser: This property does not start a new browser. Instead, it parses XML content returned by a web server, and lets you easily extract content elements from the XML content.

• Capture Ajax Responses(Regex): A regular expression matching the URLs for which Ajax Responses should be captured and made available for Scripting. Multiple regular expressions separated by line breaks can be specified.

• Capture Requests(Regex): A regular expression matching URLs which requests should be captured and made available for scripting. Multiple regular expressions separated by line breaks can be specified.

• Clear Storage: This property allows users to clear the website’s cookies and local storage. The Default value indicates that no storage will be cleared. This property when set, works on the commands such as Navigate_URL, Navigate_Link and not on the overall agent.

  • Default: A value of default will delete all cookies and local storage if using in-memory cache, but only site cookies and local storage is using a persistent cache.

  • None: Indicates that will not delete cookies and storage.

  • All Cookies & Storage: It will delete all cookies and local storage if using in-memory cache, but only site cookies and local storage is using a persistent cache.

  • Site Cookies & Storage: It will delete only website cookies and local storage if using in-memory cache, but only site cookies and local storage is using a persistent cache.

  • All Cookies: It will delete all cookies only.

  • Site Cookies: It will delete website cookies only.

  • Site Session Cookies: It will delete site session cookies only.

• Close Browser After Use: Default value is set to False. This property set to True allows user to close any browser after use. This option is only applicable if the action opens a new browser.
  Command Returning Max Scrolls: Limit the number of scrolls to a number captured by the specified command. This option can be useful when a page can scroll indefinitely.

• Custom Request Headers: Custom headers are sent with all requests made by a browser. Headers must be sent on each new browser.

• Custom Error Handling:  This enables the user to define a custom script for handling errors. This property is only applicable if "Error Handling" is set to "Custom Error Handling".

• Default Events: A default list of events are fired on the selected web element. Default value is set to True.

• Detect Encoding: This property specifies how a new parser should detect the encoding of content received from a web server. If the option is set to Default, this action uses the same detection method as the parent parser. If there’s no parent action, The default detection method is “Content & Server”. You must reopen the browser window or the agent for this change to take effect.

• Discover Action: This property set to True configures action properties automatically when the command is first executed.Default value is False.

• Editor Action: Specifies the web element or URL to use when performing the action in the design browser. Default value is “Default” which is indicated by “Use Specific URL” value False. To use the Specific URL, we set the “Use Specific URL” value True which allows users to use a specific URL.

  • URL: Specifies the URL to load.

  • Use Specific URL: Specifies whether to load a direct URL. This value is set to False.

• Error Handling: This property specifies how the agent should react when an error occurs while executing the command action. The default reaction is to exit the command. Use the option “No Error Handling” if you want the agent to continue executing sub-commands after an error . You can handle the error in sub-commands by using the script parameter “IsParentActionError”. This property specifies the different ways of Error Handling.


  • Custom Error Handling: This property specifies how the agent should react when an error occurs while executing the command action. The default reaction is to exit the command. Use the option "Custom Error Handling" if you want the agent to use a custom script after an error occurs.

  • Exit Command: The agent command will exit the action command and continue executing the next command. The agent will skip all the sub-commands of the action command.

  • Retry Command: The agent command will retry the action command a specified number of times, and if the action command does not succeed, it will skip all sub-commands of the action command and continue executing the next command. Set the property Retry Count to specify the number of retries. If Retry Count is set to zero, the agent will keep retrying the command indefinitely.

  • Retry With No Error Handling: The agent command will retry the specified number of times, but then continue with no error handling.

  • Restart and Resume Agent: The agent command will restart and resume where it left off. This option is useful if an error puts the website into a state where the agent cannot continue.

  • Restart Agent and Retry Command : The agent command will retry the action command a specified number of times, and if the action command does not succeed, then it will Restart the Agent.

  • Stop Agent: The agent will stop.

• Error Retry Clear On Success: This property clears the counter if the action succeeds. The default value is set to True.

• Error Retry Count: This property allows users to specify the number of times the agent should retry the command when an error occurs while executing the command action. This property is only applicable if “Error Handling ” is set to “Retry Command”. The default value is set to 5, which indicates that the agent will retry the command 5 times.

• Error Retry Delay: This property allows users to specify the number of milliseconds the agent will delay a retry. This property is only applicable if “Error Handling ” is set to “Retry Command”. The default value is set to 5000, which indicates that the agent will delay a retry 5000 milliseconds.

• Error Retry Proxy Rotation: The default value is set to “Keep and Rotate”. This property allows users to specify if the proxy should rotate before retrying the action and if the current proxy should be removed. This property is only applicable if “Error Handling ” is set to “Retry Command”.

  • None: Indicates that will not Rotate proxy before or after retrying the action.

  • Remove and Rotate: Indicates that current proxy will be removed and Rotate proxy before retrying the action.

  • Remove and Rotate After Retry: Indicates that current proxy will be removed and Rotate proxy after retrying the action.

  • Keep and Rotate: Indicates that current proxy will remain same and Rotate proxy before retrying the action.

• Events: A list of events to fire on the selected web element. The events can be mouseenter,
  mouseover, mousemove, focus, mousedown, mouseup and click.

• Fixed Encoding: This property specifies the encoding when “Detect Encoding” is set to “Fixed”. You must reopen the browser window or the agent for this change to take effect.
  Ignore Error Codes: Some websites return incorrect status codes, so this property allows users to ignore status codes by default unless the web server is not returning any content.

• JSON Transformation: Regular expression used to transform JSON content loaded with a static parser.

• Limit Number Of Scrolls: This property set to true allows users to limit the number of scrolls to a specified number. This property can be useful when a page can scroll indefinitely. The default value is set to false.

• Max AJAX Calls: Stops waiting for AJAX after the specified number of AJAX Calls. The default value is set to 10.

• Maximum Number Of Scrolls: This property allows users to limit the number of scrolls to a specified number. This property can be useful when a page can scroll indefinitely. The default value is set to “50”. This property is only applicable if “Limit Number Of Scrolls ” is set to “True”.

• Never Open New Browser: This property set to True indicates never configure an action to open a web page in a new web browser when discovering an action. Some webpage may not function correctly when opening a link in a new browser. The default value is set to False.

• No Parse: The web pages are not parsed if existing parsed pages exist. The default value is set to “False”.

• Page Not Found Handling: Specifies the action to take if a web page was not found. The default is to do nothing and let normal error handling deal with the error.


  • Continue: If a web page not found, it continues executes to the agent.

  • ExitCommand: If a web page not found, it will exit from the agent.

• Redirect First Request: This property allows users to redirect the first request to a new browser window when Target Browser is set to “New”, even if the first request is coming from a frame within the current browser window. If this property is set to “False”, requests from frames within the current browser window will not be redirected.

• Rotate Proxies: The property set to “True” allows users to rotate the proxy before executing the action. The default value is set to False.

• Scroll Steps: The number of pixels the page will be scrolled in each step. The default value of “o” will scroll the page all the way to the bottom and all the way to the right in each step.

• Scroll Until End of Page: This property set to True allows users to scroll to the end of the web page after an action. Scrolls repeatedly until unable to scroll any further, and wait for AJAX calls to complete if scrolling trigger AJAX calls. The default value is set to “False”.

• Separate Parser Proxies: Creates a separate parser proxy loop if the action opens in a parser. The default value is set to “False”.

• Target Browser: Specifies the web browser where a new web page should be loaded. These are the different options which can be used by a user:

  • New: Default value is set to New which specifies to load a web page in a new browser window.

  • Current: This specifies to load a web page in the same browser window.

  • Parent: This specifies to load a web page in the parent browser window.

  • Popup: This specifies to load a web page in a popup window.

• Timeouts: Specifies timeout values for the action. Timeouts specified in activities override these values.

  • Ajax Completed: The default number of milliseconds to wait for an AJAX call to complete.

  • Ajax Content Render Delay: The default number of milliseconds to wait for ajax loaded content to render on a web page.

  • Ajax Content Render Delay After Scroll: The default number of milliseconds to wait for ajax loaded content to render on a web page after triggering a scroll. The command will stop waiting as soon as it can scroll the page further down. This property is different from “Ajax Content Render Delay” which always waits a fixed amount of time. A fixed timeout is slower but is required on some websites.

  • Asynchronous Completed: The default number of milliseconds to wait for an asynchronous action to complete.

  • Discover First Activity: The default number of milliseconds to wait for the first activity when discovering new activities.

  • Discover First URL  Activity: The default number of milliseconds to wait for the first URL to start loading

  • Discover Next Activity: The default number of milliseconds to wait for the next activity when discovering new activities.

  • File Download Completed: The default number of milliseconds to wait for a file download to complete.

  • File Download Started: The default number of milliseconds to wait for a previous file download to complete to start downloading the next file.

  • Frame Completed: The default number of milliseconds to wait for frame content to complete loading. This timeout applies to internal frames, and only to external frames if the property WaitForExternalFrames is set to True.

  • JavaScript Parser Timeout: The number of milliseconds to wait for JavaScript DOM operations  to complete

  • Main Page Redirect: The number of milliseconds to wait for the main page to redirect to another page.

  • Page Completed: The default number of milliseconds to wait for a page load to complete.

  • Wait For Content Timeout: The default number of milliseconds to wait for web content to appear on a web page, or a URL to load that matches a specified  Regex.

  • Wait Times: The default timeout values are multiplied by this value. This can be a quick way to test if issues with action are caused by timeout values being too short. Default timeouts are used when discovering activities, and when scrolling a page.

• Transformation Script: A script used to transform the URL attribute when using the URL action type.

  • C# Script: Specifies C# script.

  • Enabled: To use the Script we need to set this Property as True. The default value is set to False, which indicates that the script is disabled.

  • Library Assembly File: The name of a custom assembly file when "Use Default Library" is set to false.

  • Library Method Name: The method to execute when using the default script library.

  • Library Method Parameter: A custom parameter passed to the script library method.

  • Python Script: Specifies Python script.

  • Regex Script: Specifies Regex script.

  • Script Language: Specifies the scripting language which you want to use e.g C#, http://VB.NET , Python, Script Library, Regular Expressions.

  • Template Name: The template name of the referenced template.

  • Template Reference: Loads this script from a template when the agent is loaded.

  • Use Default Library: Uses the default script library when Script Language is set to Script Library.

  • Use Selection: The script is provided with the selected web element. The script will not be provided with the selected web element if this value is False.

  • Use Shared Library: Uses a script library that is shared among all agents.

  • VB.NET Script: Specifies VB.NET script.

Command Description: A custom description for the command. Default value is Empty.

Command Transformation Script:  A script used to change command properties at run time. The default value is disabled.

Disabled: This property set to True allows user to disable the command. A disabled command will be ignored. The default value is set to False.

ID:  This property indicates the internal unique ID of the command and is always auto- generated e.g. 58c8e4ac-e4c0-48f7-a63d-77064945380b.

Increase Data Count: This property indicates the data count every time this command is processed. The default value is set to False. Set it to TRUE if you want to get the count of the number of times a specific command is executed to get the data. The data count value is increased during data extraction, so it is used to measure agent progress and basis this increased data count, the agent  decides the success criteria.

Name:  This property specifies the name of the command.

Notify On Critical Error:  A notification email is sent at the end of an agent run if the command encounters a critical error, and the agent has been configured to notify on critical errors. Critical errors include page load errors and missing required web selections. Default value is set to False.

Always Execute:  Set this property value as True, if you want  the container is always executed if encountered on retry or continue. List Commands are only executed if they processes a single input. Always Execute can be used to always execute container commands when retrying, even when they have already been completed. Default Value is set to False.

Command Link:  Links to another container command where processing will continue.The targeted container command will be executed, so it’s normally best to link to a group command  that does nothing, so it’s clear what happens after the link.

Dependent Command:  The action of the dependent command will come into effect only when the agent has a supporting parent container command, in which case, it will be executed before the parent container command is processed.

Repeat While Selection is Valid:  Set this property to TRUE if you want to repeatedly process the command while the command selection is valid. Default value is set to False.

Debug BreakPoint: Debugging will break at this command if the break point is set. Default value is set to False.

Debug Disabled: A disabled command will be ignored during debugging. Default value is set to False.

Debug Error Option: This property specifies what action to take when an error occurs in the debugger. Default value is set to Notify which indicates that when an error occurs at debugging time , then it will be notified. If we want to ignore the error at debug time , then we need to set this property value as Ignore.

Data Validation Script: A script is used to validate a single row of export data.

Duplicate Export Row Handling: This property specifies what action to take when duplicate data export rows are detected. All  child data of a removed row will be assigned to the existing duplicate row. The duplicate check can be performed on values extracted by  Capture commands with the key property, or it can be performed on hash keys calculated from all values in an export data row. Default value is set to “None” .

• None: This will not remove Duplicate rows.

• Remove(SHA-512):  This is used to  remove Duplicate rows when an agent run in single session.

• Remove(Key Values): This is used to  remove Duplicate rows when an agent run in single session.

• Remove(Key Values Across Sessions) :  This is used to  remove Duplicate rows when an agent run in Performance Sessions.

Empty Export Row Handling: This property specifies what action to take when an export data  row is empty. If removing empty rows, all child data of an empty row will also be removed, even if the child data is not empty. Capture commands with the property “Act as System” are ignored when checking if a data row is empty. Default value is set to “None” .

• None: This will not remove Empty rows.

• Remove Row: Removes Empty rows.

• Remove Row and Increase Error: Remove Empty rows and increase errors.

• Trigger Export Failure: Export fails.

Empty Export Table Handling: This property specifies what action to take when an export data table is empty. Default value is set to “None”.

• None: This will not remove Empty table.

• Remove: Removes Empty table.

• Remove Table and Trigger Error: Remove Empty table and trigger error message.

• Trigger Export Failure: Export fails.

Export Empty Row If No Data: Default value is set to True indicates that exports a single empty data row if this container extracts no data. Parent and Sibling data will be lost if merged with an empty data set, so this option ensures that parent and sibling data is exported when this container extracts no data. This option only has an effect when “Export Method” is set to “Add Columns and Rows”. If we don’t want to export a single empty data row if the container extracts no data , then we need to set is False.

Export Enabled: Default value is set to True. A command with Export Enabled set to False will not save any data to data output. This includes all sub-commands if the command is a container command.

Export ID Name: This property specifies the name of the primary key column in the exported table (database table, spreadsheet, CSV file, XML Node), if this container generates a new table. The export name postfixed with “ID” is used if this property is empty. If multiple agents are exporting data to the same table,  then you must set this option to the same value for all those agents.

Export ID Sort Order: This property specifies the sort order  of the primary key column in the exported table (database table, spreadsheet, CSV file, XML Node), if this container generates a new table. Default value is set to 1000.

Export Keys: This property specifies how keys are exported for this container. This property applies only if the agent is configured to export to file.

• Default: Default indicates that Primary key exported for the container.

• None: Indicates that no any key will be exported.

• Primary: This option allows users to export Primary key only.

• Parent: This option allows users to export Parent key only.

• Both: This option allows users to export both Primary and Parent keys.

In addition, there is another 'Export Keys' property available under Data->Export Target->Export Keys. This must be set to either "Row Counter" or "Always"

Export Method: This property specifies how to  export data from this container. Default value is set to “Add Columns and Rows” which allows users to add columns and rows. There are different ways in which we can extract data:-

• Separate Output: This property allows users to export data in separate file.

• Add  Columns And Rows: This property is used to add columns and rows.

• Add Columns Only: This property is used to add columns only.

• Add Columns and Merge Rows: This property is used to add columns and merge rows.

• Convert Rows Into Columns: This property allows users to convert rows into columns

Export Name: This property specifies the name of the exported table (database table, spreadsheet, CSV file, XML Node), if this container generates a new table. The command name is used if this property is empty. If multiple agents are exporting data to the same table, then you must set this option to the same value for all those agents.

Export Parent ID Name: Specifies the name of the parent key column in the exported table (database table, spreadsheet, CSV file, XML Node), if this container generates a new table. The parent ID column name is used if this property is empty. If multiple agents are exporting data to the same table, then you must set this option to the same value for all those agents.

Export Parent Sort Order: Specifies the sort order of the parent key column in the exported table (database table, spreadsheet, CSV file, XML Node), if this container generates a new table. Default Value is 1000.

Export Rows to Columns Name Command: When "Export Method" is set to "Convert Rows Into Columns" this command provides the names for the new columns.

Export Rows to Columns Value Command: When "Export Method" is set to "Convert Rows Into Columns" this command provides the values for the new columns.

Export Validation Error Handling: Specifies what action to take when data validation fails on an export data row. Default value is set to “ Remove Row and Increase error”.

• Remove Row and Increase Error: Remove Row and increase error when data validation fails.

• None: This will not remove any row when data validation fails.

• Remove Row:  Removes row when data validation fails.

• Trigger  Failure: Trigger Export fails when data validation fails.

History Table Name: Specifies the name of the database table containing historical data if this container generates a new table and the agent is configured to store historical data in separate database tables. The command name appended with "History" is used if this property is empty. If multiple agents are exporting data to the same table, then you must set this option to the same value for all those agents.

Plural Export Name: Specifies the plural name of the exported table if this container generates a new table. The "Export Table Name" with the added character "s" is used if this property is empty. This property can be used to control the name of XML nodes when exporting to XML.

Max. Page Number Command: Specifies a command used to capture the maximum number of pages in pagination. The pagination command will stop following links when this number of pages is reached.

Max. Page Number Value: The fixed value when using the option "Use Max. Page Number Value".  The pagination command will stop following links when this number of pages is reached.

Navigate Directly to Page: Navigates directly to a specific pagination page when resuming an agent. It's not always possible to navigate directly to a pagination page. For example, this is not possible for websites using AJAX pagination.

Page Number Attribute: The attribute used to capture the page number.

Page Number Transformation Script: A script used to transform the page number content. The page number content is extracted from the web element attribute specified by PageNumberAttributeName.

Pagination Command Link: The command that is executed for each pagination link.

Pagination Type: Specifies the type of pagination.

• Single Next Page Link:

  • We recommend that you use the Single Next Link pagination type on a website that uses a single link to move to the next page. In addition to a single Next Page link, a website may provide a sequence of pagination links. In such cases, you should still choose this pagination type, which will ignore any of the other pagination links. It's only necessary that Sequentum Enterprise can move to the next page in the sequence. So, it's more efficient to identify the Next Page link.

  • Sequentum Enterprise will continue to follow the Next Page link until it no longer appears on the next results page - or it becomes inactive. In very rare cases, a website may continue to display an active Next Page link even when there are no more pages available, and may link back to the first page in the sequence or continue to load the last page.

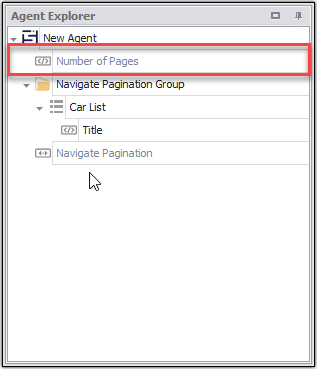

  • You can set the True Use Max. Page Number Command property and then configure the agent to stop the pagination command when it reaches the maximum number of pages. The Max Page Number Command property requires you to specify the Capture commands that delivers the maximum page number. Most websites that display a search result will also display the total number of available pages in the search result, so you can choose the Web Element Content command to capture the total number of pages. Then, use this command to place a limit on the number of pages that the pagination command will process.

  • If you want to stop pagination on a fixed page, you can add a Calculated Value command that contains the fixed page number, and then use that command as the command that delivers the maximum page number.

• List of Numeric Links:

  • This pagination type is the best choice for a website that only displays a sequence of pagination links but lacks a Next Page link. Page set navigation links are often found together with the numeric links. For example, if you find 10 numeric links, the page set navigator links allows a user to navigate to the next 10 numeric links or the previous 10 numeric links. This pagination type requires one web selection for the numeric links and, if applicable, another selection for the page set navigator link that moves to the next set of numeric links.

  • When Sequentum Enterprise processes a list of numeric links, it will extract a specific attribute of the chosen web elements and then convert the content into numeric values. If the agent cannot convert the content into a numeric value, it ignores the corresponding link. Sequentum Enterprise expects a sequence of links, so it will continue to the next page number in the sequence after it processes the current page number. You can use a content transformation script to convert the content into a number. For example, if the agent cannot convert the text attribute of a pagination link directly into a number, it may look for the page number in the URL attribute. In this case, a transformation script would be necessary to transform the URL into a number.

• List of Text Links:Use this pagination type on a website that features a list of pagination links but none of the attributes of the link elements will convert into sequential numbers. A common application of this pagination type is on a website that displays items according to the first letter of the item name. In cases like this, the pagination would consist of all the letters in the alphabet (A-Z), and when a user clicks on a letter, all items starting with that letter will appear in the listing.

Use Max. Page Number Command: Uses a command to capture the maximum number of pages in pagination. The pagination command will stop following links when this number of pages is reached.

Use Max. Page Number Value: Uses a fixed value as maximum number of pages in pagination. The pagination command will stop following links when this number of pages is reached.

Use Next Pagination Set: The selection property includes a selection for a link to the next pagination set.

Template Name:  The template path of the referenced template.

Use Template Reference:  Loads this container from a template when the agent is loaded. Default value is False.

Selection:  The selection XPaths of the web elements associated with this command.

• Paths:  List of selection XPaths.

  • Path:  The selection XPath.

• Select Hidden Elements:  Selects visible and disabled elements when true. Otherwise selects only visible and enabled web elements.

• Selection Missing Option:  Specifies what happens if this selection does not exist in the current page.

  • Default: Specifies if  this selection does not exist in the current page then logs error.

  • Ignore Command but Execute Sub-Commands: Specifies if  this selection does not exist in the current page then it ignores the current command , but executes sub-commands of the command.

  • Ignore Command: Specifies if  this selection does not exist in the current page then it ignores the current command as  well as sub-commands.

  • Log Error and Ignore Command: Specifies if this selection does not exist in the current page then it ignores the current command as  well as sub-commands and logs an error message.

  • Log Warning and Ignore Command: Specifies if this selection does not exist in the current page then it ignores the current command as  well as sub-commands and logs a warning message. Note: Warning message will be logged if , Log level is set to either ‘Low’ or ‘High’.

  • Log PageLoad Error and Ignore Command: Specifies if  this selection does not exist in the current page then it ignores the current command as  well as sub-commands and logs a Page Load error.
